Parts inspection: Find the related purchase order No. check the size, function，such as install the disc brake to bike to check the function. And we have Q/C group, every cargo come to our factory, Q/C will send all parts inspection pic in the group.
Key inspection items:
1. Accessories screw must be dacron
2. Rim package: 3 layers of paper cover and a layer of woven cloth
3. The parts cannot have logo if customer have requirement
4. Stem four screw don’t lock too tight
5. Electric parts must be fully inspected
6. The front fork sealing plate must be fully welded
7. Single speed Chain wheel disc must be single speed
8. Electric bike tire should be Kenda or CST
9. The export frame must have frame serial number
Full CKD or SKD order, we will assemble bike in advance one week, check the parts size and correct, And then send you pic to check the painting and whole bike looks
Inspection Tools Introduction:
 |
 |
 |
|

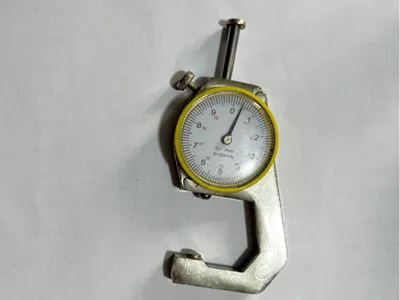

Thickness Gauge: Measure the no-welding parts thickness |
Vernier caliper with Certification |
Tire pressure inspection |
 |
 |
 |
|
Tube thickness monitor such welded frame - Ultrasonic thickness gauge |
Coating detector: Frame painting coating standard 130-180 um (micron); Bicycle hub coating 38-40 um (micron) |
Torque wrench: inspect the bolts strength and torque |
 |
 |
 |
|
BB SETS, rear wheel locking nut 300N (Newton) |
Inspect Chain wheel threaded tool |
Inspect the crank set square |
 |
 |
 |
|
Inspect the fork butted column, standard 90-100 |
Measure bike tube, kickstand, Angle of contact Kid bike cannot lower 20 angle 24inch bike cannot lower 25 angle |
First use cutting machine cut standard size 25*100 mm Carton breaking strength test Dual American kraft corrugated cardboard, Break resistance test more than 20kg, edge crush 1200N (Newton) Dual kraft-paper box, Break resistance test 10.5kg, edge crush 850 N (Newton) |
 |
 |
 |
|
Inspect handle grip tension gauge, not lower than 7 Newton |
Inspect handle grip tension gauge, not lower than 7 Newton |
Spoke tension test Front wheel 90-110 Newton, rear wheel left side 110-113 Newton, rear wheel right side 90-110 Newton. |
 |
 |
 |
|
Inspect the rear derailleur hanger perpendicular and parallel |
Salt Spray Test (48 hours) Inspect the parts corrosion resistance |
|
